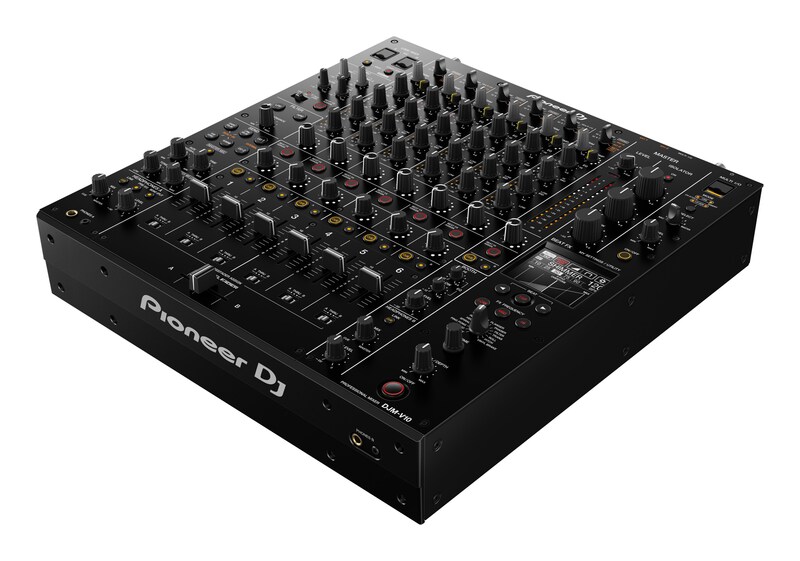

Forge a new sound with the DJM-V10; a new breed of mixer, born of fresh thinking. It’s built to allow the most creative DJs to craft original soundscapes.
This 6-channel unit – loaded with unique features – produces warm audio full of energy and presence. So, take full control of your mix and get ready to create something the crowd has never heard before – either performing solo or back-to-back with another DJ.
Main Features
MIDI Control
Full assignable MIDI controls
ProDJ Link
Yes
Booth EQ
Yes
P-LOCK Fader Caps
Yes
Auto Standby
Yes
DVS Control
rekordbox
Serato DJ Pro
TRAKTOR PRO 3
What's in the box
DJM-V10
Power Cord
Warranty (for some regions)
Quick Start Guide
Precautions for Use
Specifications
Width
437.6 mm
Height
107.9 mm
Depth
467 mm
Weight
11.9 kg
Frequency Range
20 - 40000 Hz
Sampling Rate
96 kHz
A/D Converter
32 bit
D/A Converter
32 bit
S/N Ratio Line
105 dB
S/N Ratio Phono
88 dB
S/N Ratio Mic
79 dB
Distortion
< 0.005 % (LINE)
Channels
EQ
4 band
EQ Range
[Hi/Low] -∞ ~ +6 dB / [Hi Mid/Low Mid] -26 dB ~ +6 dB dB
COMP
Yes
Performance Control
Channels
6
Filter
HPF
LPF
SEND
Short Delay
Long Delay
Dub Echo
Reverb
2 Externals (1/4-inch TS jack)
MULTI I/O
1/4-inch jack
USB (Type A)
Beat FX
Delay
Echo
Ping Pong
Spiral
Helix
Reverb
Shimmer
Flanger
Phaser
Filter
Trans
Roll
Pitch
Vinyl Brake
FX Frequency
Yes
X-PAD
Yes
rekordbox Quantize
Yes
Master Isolator
Yes
Crossfader
Crossfader Type
Magvel Fader
CURVE Assignable
Yes
Fader Curve
3
Mic
Mic Connection
XLR / 1/4-inch Jack Combo
1/4-inch TRS Jack
Talkover
3 Position Switch
Talkover Attenuator
Yes
Terminals
Inputs
6 DIGITAL (Coaxial)
6 LINE (RCA)
4 PHONO (RCA)
Send/Return
3 SEND (1/4-inch TS jack)
3 RETURN (1/4-inch TS jack)
LAN
1
USB
2 USB B ports
1 USB A port
Outputs
2 MASTER (XLR, RCA)
1 BOOTH (1/4 inch TRS Jack)
4 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
1 REC OUT (RCA)
1 DIGITAL (AES/EBU)
1 MIDI (DIN)
