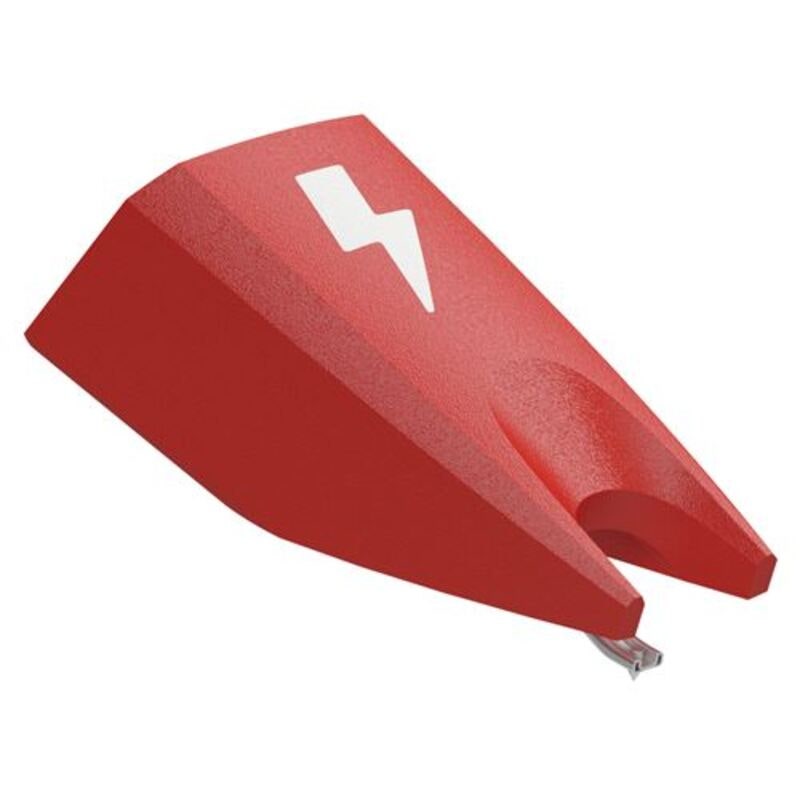

ORTOFON STYLUS MKII DIGITAL, OPTIMIZED FOR TIME CODED VINYL

Replacement stylus offers a tactile feedback when seating, indicating a snug and secure fit, while a cut-out area in the front allows for far more accurate needle drops. • Larger, wider and more robust stylus body • Easier to grip and handle • Better fix by metal spring • Tactile feedback of correct mount Output voltage at 1000Hz, 5cm/sec. - 10 mV Channel balance at 1kHz - 1 dB Channel separation at 1kHz - 22 dB Channel separation at 15 kHz - 15 dB Frequency range at -3dB - 20-18.000 Hz Tracking ability at 315 Hz at recommmended tracking force - 100 μm Compliance, dynamic lateral - 14 μm/m N Stylus type - Spherical R 18 μm Tracking force range - 3 - 5 g Tracking force recommended - 4 g Recommended exclusively for Concorde MkII DIGITAL • Large stylus viewing cut‐out
