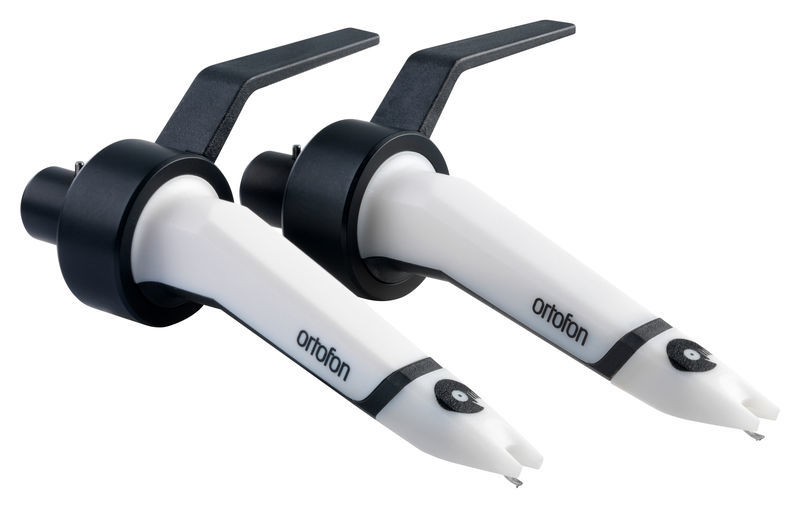

Ortofon Concorde MKII Scratch Twin
Artikkelnummer 10564562-Pack The Concorde Scratch allows turntablist and scratching DJs to achieve new levels of performance with an unprecedented tracking ability and extra high output. • The SCRATCH is intended especially for scratching and back-cueing. The SCRATCH uses spherical styli, as they preserve more of the groove over backcueing and scratching. • For DJs that require increased tracking ability, the SCRATCH is up to the task. The Scratch has a supreme ability to trace the grooves of the records and it is tailored specifically for scratch. • Due to its very high output 10 mV, it is perfect for scratch of all music with deep bass frequences. With solid bass reproduction and extended highs, the SCRATCH is great for any style, providing energetic sound. Maximum scratch performance guaranteed!
Concorde MKII Scratch
The Concorde Scratch is intended especially for the disciplines of scratch and back-cueing. It allows turntablist and scratching DJs to achieve new levels of performance with unprecedented tracking ability and extra high output.
Specifications
- Channel balance at 1 kHz: 1 dB
- Output voltage at 1 kHz, 5cm/sec: 10 mV
- Channel separation at 1 kHz: 22 dB
- Tracking ability at 315Hz: 120 μm
- Compliance, dynamic, lateral: 14 μm/m N
- Cantilever material: Aluminium
- Stylus type: Spherical diamond
- Stylus tip radius: R 18 μm
- Tracking force range: 3 - 5 g
- Tracking force, recommended: 4 g
- Internal impedance, DC resistance: 1200 Ohm
- Cartridge weight: 18,5 g
- Recommended load resistance: 47 kOhm
- Internal inductance: 850 mH
- Recommended load capacitance: 200-400 pF
- Replacement stylus: Stylus CC MKII Scratch
