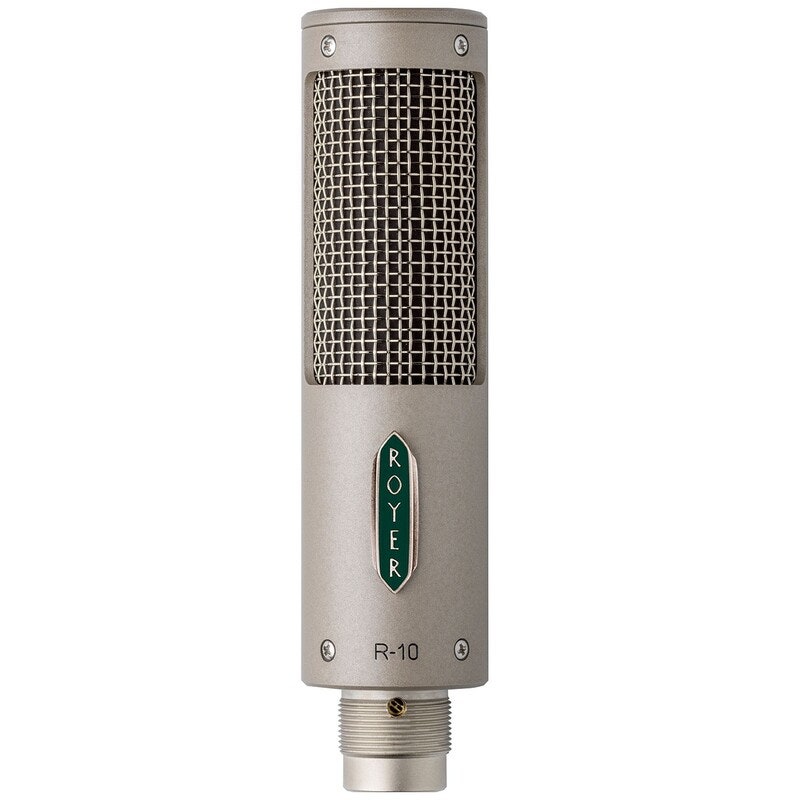

Royer Labs R-10
Artikkelnummer 1061851Studio/Live Ribbon Microphone
The Royer R-10 is a passive mono ribbon microphone designed for use in the studio and on live stages. Hand-built in our Burbank California factory, the R-10’s sound and performance are all-Royer and it handles SPLs of up to 160 dB @ 1 kHz. The R-10’s compact size and mounting system allows for flexible, unobtrusive positioning.
The R-10’s 2.5-micron aluminum ribbon element is formed with our our patented direct-corrugation process and is protected by a 3-layer windscreen system and internally shock-mounted ribbon transducer. The ribbon transducer is wired for humbucking to reject electromagnetically induced noise.
The R-10’s built-in windscreen provides superior protection from air blasts and plosives. It also reduces proximity effect (bass buildup from close miking) so guitar cabinets and acoustic instruments can be close-miked with less bass buildup. The R-10’s internally shockmounted ribbon transducer isolates the ribbon element from shocks and vibrations, increasing the ribbon element’s durability.
The R-10 utilizes a David Royer custom designed transformer for high overload threshold, minimizing saturation at even extremely high sound pressure levels. You’ll never overload an R-10! The mic’s open grill design minimizes standing waves and associated comb-filtering effects and its smooth frequency response, phase linearity and lack of self-distortion make it ideal for all digital recording and live sound formats.
Specifications
Acoustic Principle: | Electrodynamic pressure gradient |
2.5-micron aluminum ribbon | |
Polar Pattern: | Figure 8 |
Frequency Response: | 30Hz-15,000Hz +/- 3dB |
Output Impedance: | 100 Ohms |
Maximum SPL: | 1135dB @ 50 Hz, 160dB @ 1kHz |
Recommended Load Impedance: | 700 Ohms (or greater) |
Weight: | 13 oz (368 grams) |
Connection Type: | Male XLR 3-pin (Pin 2 Hot) |
