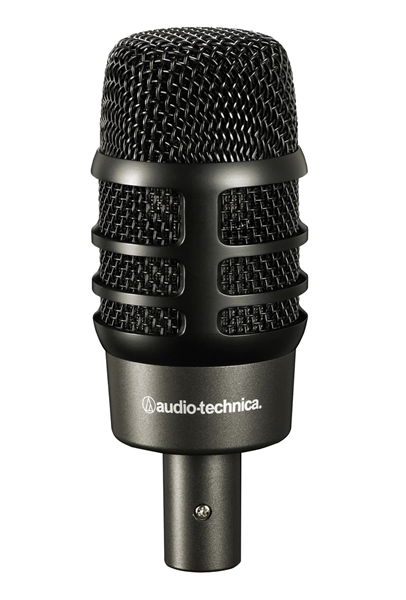

Audio-Technica ATM250DE

Audio-Technica Mikrofon Dynamisk/Kondensator Instrument Hypernyre

The Artist Series new kick-drum mic, the ATM250DE dual-element instrument microphone features cardioid condenser and hypercardioid dynamic capsules combined in a single housing. Audio-Technica's innovative use of two polar patterns is ideal for kick drum: the hypercardioid dynamic element focuses tightly on the aggressive attack of the beater, while the condenser captures the round tonalities of the shell. The elements are positioned in a perfect phase relationship, something practically impossible to achieve with two separate microphones. Includes a professional isolation clamp to provide secure mounting, versatile positioning and effective dampening of unwanted mechanical noise.

• Audio-Technica's proven dual-element design features two elements (condenser and dynamic) enclosed in a single housing
• Neodymium dynamic element provides punch and attack, while the condenser element captures the full audio spectrum
• Elements are positioned in a perfect phase relationship, something practically unachievable with two separate microphones
• Perfect for kick drum, guitar amps and instrument use
• Integral 80 Hz HPF switch and 10 dB pad (condenser element)
• Versatile mounting options and effective dampening of mechanical noise thanks to included AT8471 isolation clamp
• Corrosion-resistant contacts from gold-plated XLRM-type connector
• Rugged, all-metal design and construction for years of trouble-free use

Specifications

• Frequency Response: 40-20,000 Hz (condenser) 40-15,000 Hz (dynamic)
• Low Frequency Roll Off: 80 Hz, 12 dB/octave (condenser)
• Open Circuit Sensitivity: 49 dB (3.5 mV) re 1V at 1 Pa (condenser) -53 dB (2.2 mV) re 1V at 1 Pa (dynamic)
• Impedance: 50 ohms (condenser) 600 ohms (dynamic)
• Maximum Input Sound Level: 148 dB SPL, 1 kHz at 1% T.H.D. (condenser)
• Dynamic Range: 122 dB, 1 kHz at Max SPL (condenser)
• Signal to Noise Ratio: 68 dB, 1 kHz at 1 Pa (condenser)
• Phantom Power Requiremens: 11-52V DC, 3.5 mA typical (condenser)
• Weight: 320 g (11.3 oz)
• Dimensions: 143.6 mm (5.65") long, 55.0 mm (2.17") diameter
• Output Connector: Integral 5-pin XLRM-type
• Cable: 5.0 m (16.5') dual shielded, 8-conductor cable, 5-pin XLRF-type connector at microphone, two 3-pin XLRM-type output connectors
• Accessories: AT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 adapter; soft protective pouch
