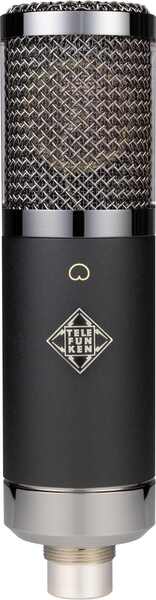

Telefunken TF17 FET
Artikkelnummer 1088174The fixed cardioid TF17 combines a rich, mid-forward voicing with portable and dependable modern phantom-powered circuitry for all recording environments.
Bestillingsvare
Betal direkte, faktura eller delbetaling - Lagre kort og bankkonto - Enkelt og trygt - Klarna kjøperbeskyttelse
Kr 14390/stk
Features
- Bold and forward tone with punchy transient response
- Compact size suitable for all recording environments
- Fixed true cardioid polar pattern with K47-style capsule
- High SPL handling, low noise phantom-powered FET amplifier
- UK-made OEP/Carnhill transformer with high grade nickel-iron core
- Designed and assembled by hand in the USA
- Recommended Applications: Vocals, Drums & Percussion, Electric Guitar, Live Sound
Technical Specifications
Type: FET Condenser
Polar Pattern: Cardioid
Frequency Range: 20 Hz – 20 kHz, ±3 dB
Power Source: +48V Phantom Power
Capsule: TK47S – Center Terminated Large Diaphragm, Single Membrane
Transformer: OEP/Carnhill T217
Sensitivity: 12 mV/Pa, ±1 dB
THD at 1kHZ at 1Pa (Amplifier): 0.01%
Output Impedance: < 200 Ω
Maximum SPL (for 1% THD): > 135 dB
S/N Ratio: 91 dBA
Self Noise (Amplifier): 3 dBA
Dimensions: 175 mm L x 46 mm Dia
Weight: 545 g
Included Accessories: Shock Mount, Stand Mount, Mic Sleeve, Mic Case
