M-Live GO.8

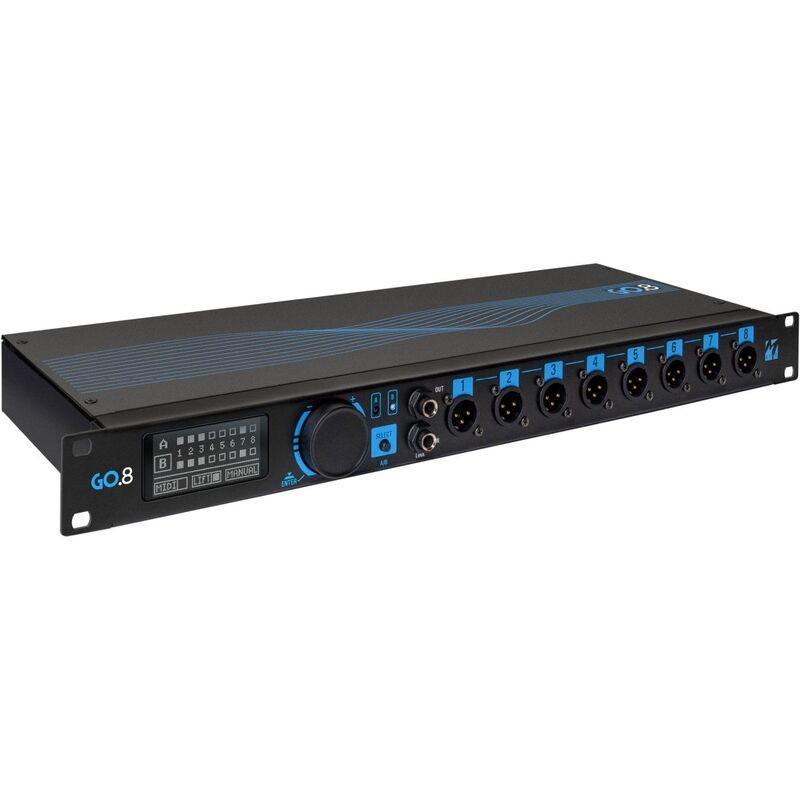

GO.8 - The Smart Backup Switcher for Audio, Video and MIDI

GO.8 is an automatic switcher for backup of audio, video and MIDI. It can automatically switch between two audio systems with 8 channels each, two video sources and two MIDI devices.

How it works:

• Automatic switching: GO.8 detects if the main system stops working and then automatically switches to the backup system. The switching is done using a 1 kHz audio signal via channel 8. If the signal is missing, the device switches to the backup.
• Manual switching: You can also switch manually with a button on the front.
• Multiple units linked together: If more channels are needed, multiple GO.8 units can be linked together to handle 16, 24 or 32 tracks.

Connections and use:

• Audio inputs: Two groups of 8 inputs each. You can use either 6.35 mm TRS connectors or 25-pin D-Sub connectors.
• Audio Outputs: XLR outputs on the front (for microphone level) and D-Sub outputs on the back (for line level).
• Video and MIDI: Two video channels and two MIDI channels that can switch automatically with the audio.
• 4K Video Support: Supports resolutions up to 3840x2160 (4K) at 30 Hz.

Extra Features:

• SMPTE Time Code: GO.8 can read time codes from channel 7 to synchronize audio and video in real time.
• Dual Power Supply: Two power sources can be connected to avoid interruptions in the event of a power failure.
• Compatible with B.Beat devices: All outputs on B.Beat devices can be used without having to reserve any for GO.8.
