Whirlwind LBS

Artikkelnummer 1000731

Delings- og DI-box.

Bestillingsvare

Betal direkte, faktura eller delbetaling - Lagre kort og bankkonto - Enkelt og trygt - Klarna kjøperbeskyttelse

Kr 3175/stk

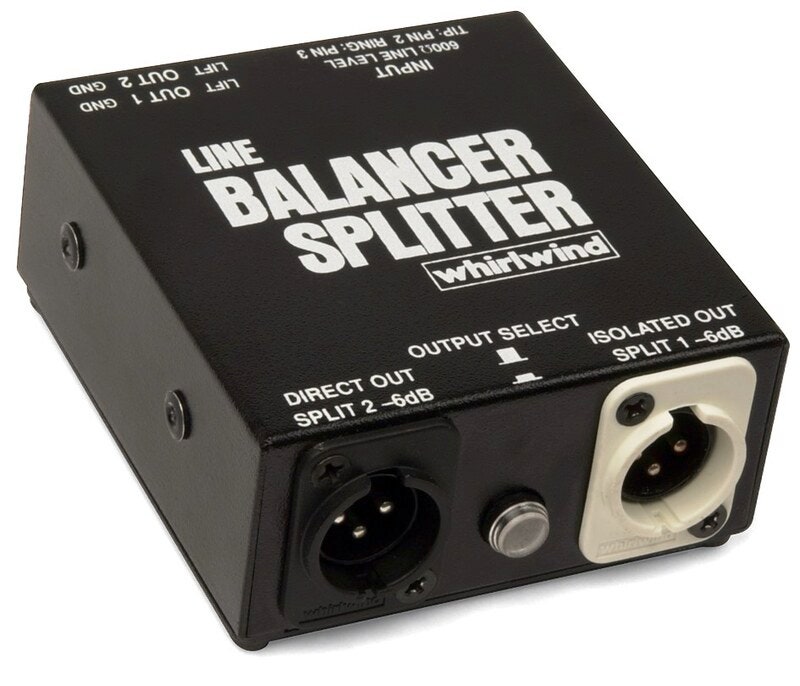

The balancing provides superior noise rejection when you have equipment with unbalanced outputs that need to feed equipment with balanced inputs. The transformer isolation helps eliminate unwanted hum and buzz caused by power line and grounding issues.

In ISO mode the signal is passed directly through to one output and transformer isolated to the second output.

In SPLIT mode the signal is transformer isolated to both outputs with a resulting 6dB drop in level at each output.

A ground lift switch is provided for each output.

Both a female XLR and a 1/4" TRS jack are provided for the input signal. Male XLR connectors are used for the output signals.

Also available in a 2-channel iso/balancer unit (without splitting) for stereo applications. See the ISO-2 .

Passive
Input: -10dBm to +26dBm
Output: -10dBm to +26dBm (ISO mode), -16dBm to +20dBm (SPLIT mode)
Frequency Response: 20Hz-20kHz ±1dB
