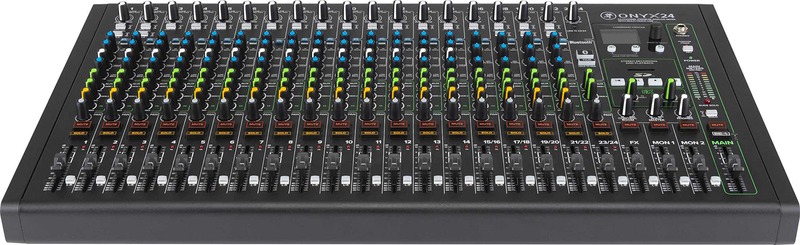

Mackie Onyx24
Artikkelnummer 107273324-channel premium analog mixer with multitrack USB
CLASSIC SOUND, MODERN PERFORMANCE
Legendary Onyx mic preamps and Perkins “British Style” EQ alongside premium
analog circuitry deliver professional studio-quality sound and ultra-low noise.
A COMPLETE MULTI-TRACK RECORDING SOLUTION
Record and playback to and from your Mac/PC via USB or recording your
main mix directly to an SD card.
UNMATCHED CONTROL AND FLEXIBILITY
Every Onyx model is equipped with Studio Command, a full-color display
and single knob interface for managing built-in FX and SD card file
browsing/recording/playback.
PREMIUM ANALOG MIXERS WITH MULTI-TRACK USB
PREMIUM ANALOG MIXERS WITH MULTI-TRACK USB
LEGENDARY ANALOG SOUND
• Award-winning Onyx mic preamps provide up to
60dB of gain
• Premium analog circuitry delivers studio-quality
sound and keeps noise to a minimum
• Analog/USB channel strips with flexible routing
• Legendary Perkins “British style” EQ with sweepable
midrange oers classic sounds of the 60s and 70s
• Robust digital eect engine, including usercustomizable reverbs, delays, and more, with a
dedicated FX EQ
HIGH-RESOLUTION RECORDING AND PLAYBACK
VIA SD CARD OR USB
• High-resolution 96kHz / 24-bit multi-track recording to
Mac/PC via USB
• Direct to SD card stereo recording and playback
• Channel-assignable 4-track USB return (2 stereo pairs)
• Send your Main Mix to USB via a dedicated switch
STUDIO COMMAND
Powerful, Intuitive Full-Color Display and
Single-Knob Interface
• Easy navigation of FX parameters, onboard SD
recording and playback
• Visually browse files on the SD card via the built-in
display
• Dedicated physical buttons for Previous, Next, Record,
and Play/Pause
• Store up to 6 user FX presets for easy recall
HIGH-RESOLUTION FX PROCESSOR
• Built-in eects presets provide that finishing touch
out of the box
• Ability to store 6 user presets
• Utilize built-in eects for live performances,
streams, and beyond
• Reverb, delay, chorus, and more
• Dial in the perfect sound with adjustable parameters
and dedicated EQ
BLUETOOTH® STREAMING
• Pair your Bluetooth enabled device and stream audio
directly to a channel on the mixer
• Streamed audio can be routed to Aux Sends and the
Main Mix
POWERFUL MIXING TOOLKIT
• 3-band Perkins EQ with On/O hard bypass switch on
all channels
• Hi-Z switches allows direct connection of guitars, basses,
and other instruments
• 100Hz low-cut filter and 48V phantom power on all mic channels
• Stereo 1/8" input and Bluetooth streaming
• Stereo line inputs
• Aux/Monitor outputs with dedicated per-channel send control
• Dedicated Control Room outputs
• Headphone output with dedicated level control
• Dedicated L-R Assign switches per channel
• 12-segment stereo meters
• Overload indicators on all channels
• PFL/AFL channel solo
• Footswitch input for FX Mute (footswitch not included)
RUGGED CHASSIS AND PROFESSIONAL DESIGN
• Backlit Mute and Solo buttons provide a positive tactile feel
and clear visual feedback
• Sealed rotary encoders resist dust and grime
• Built-Like-A-Tank™ heavy steel chassis
• High-visibility, high-contrast controls
• Rugged, QuickGrip™ side cheeks oer convenient mobility
and protection
HIT THE GROUND RUNNING WITH POWERFUL SOFTWARE
AND PLUGINS
• Pro Tools® | First recording software and plugin bundle
Musician Collection for Pro Tools | First, with 23 plugins like
BBD Delay, Eleven Lite, 304E EQ, and 304C Compressor
• Waveform™ OEM recording software and plugin bundle
DAW Essentials™ Bundle for Waveform™ OEM,
with 16 powerful plugins like Equaliser, Compressor,
Reverber8, and Limiter
