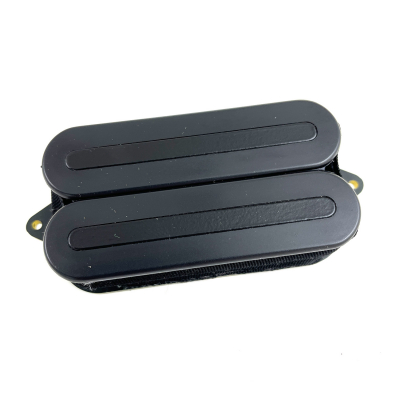

DiMarzio DP102BK

X2N® DP102BK, F-spaced.

The X2N® is a take-no-prisoners, in-your-face humbucker. Twin, wide-bar pole pieces give the X2N® a nasty, dangerous look and rightly so. Our highest gain pickup was created to push tube amps into total overdrive. Put one in the bridge position for a powerful jolt to the voltage the amp sees from your guitar. The result is a sound that can only be described as blistering. The magnetic field of the X2N®  is very powerful and focused. It captures the character of whichever guitar it's in. If your guitar is warm sounding, the X2N® will act like a sledgehammer. A bright-sounding guitar will go into total scream mode. And the X2N® still has versatility: single-coil and series-parallel modes are particularly effective, because the X2N® pickup's power gives these sounds more authority than is possible with weaker humbuckers.

Recommended For Bridge position in solid body guitars.

Tech Talk
The X2N® works in any situation where maximum power and overdrive is required. The dual blade pole pieces create a very even, balanced sound. The X2N® works best in combination with higher-output pickups. It can also combine well with the Fast Track 1, The Chopper, and Pro Track. The split option is very effective, because a single X2N® coil has similar performance parameters to many Strat®-type pickups.

Specs. DP102BK:
Finish: Black. F-spaced.
Pole rails: Black.
Quick Connect: Yes.
Wiring: 4 Conductor.
Magnet: Ceramic.
Output mV: 510.
DC Resistance: 15.83 Kohm.
Year of Introduction: 1979.
Patent: n/a.

Tone guide:
Bass: 9.0
Low Mid: 8.5
High Mid: 8.5
Treble: 3.5
