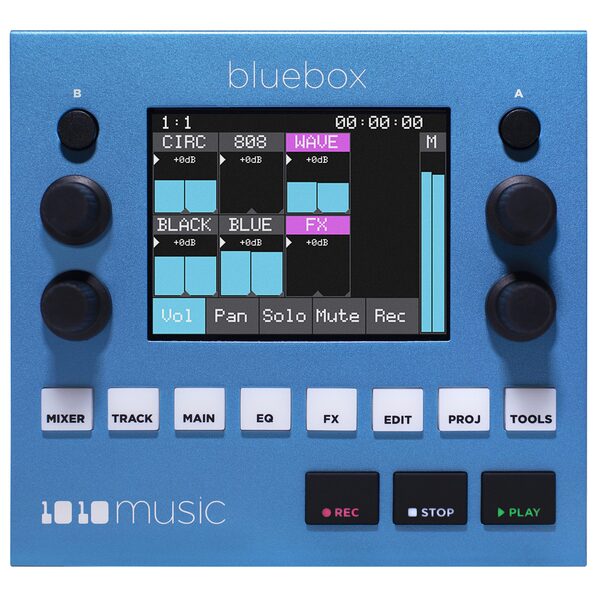

1010Music Bluebox
Artikkelnummer 1071815Compact 12 Channel Digital Desktop Mixer / Recorder with 4 band parametric EQ per channel and global Compressor, Delay and Reverb FX
Highlights
• Mix 12 mono/6 stereo tracks of live or prerecorded sound
• Independently route each track to any combination of three stereo outputs:
o Stereo Output 1 – Main mix
o Stereo Output 2 – Assignable, with dedicated sub-mixer (pre or post fader)
o Stereo Output 3 – Headphone output, with dedicated sub-mixer (pre or post fader)
• Supports USB class audio to interface with a Mac, PC, iOS, or Android device
• Send the master output on the bluebox in stereo to your computer or device
• Play a stereo signal on your computer or device and have it replace the audio input of your choice on bluebox
• Control one parameter for multiple tracks at once in Mixer mode
• Focus on one track at a time in Track mode
• Adjust the level or mute state of each output independently
• Use touch gestures or knobs to tweak your sound with four band EQ per track with support for Low Cut/Low Shelf, Parametric, and High Shelf/High Cut settings for each band
• Apply high-quality Reverb and Delay effects with independent effects sends for each track
• Override the headphone output with the Main mix on demand
• Maximize the loudness and unify your mix with the built-in global compressor
• Sync to external clocks through the MIDI Input and Output
• Record hours of music as 48k, 24 bit WAVs directly to the microSD card as multi-track or as the main stereo mix
• Playback previously recorded tracks while recording new ones
• Load firmware updates through the microSD card
• Mix electronic music gear such as the 1010music blackbox, Eurorack modules, drum machines, samplers and synthesizers
• Save and recall Project settings including all parameters for tracks, outputs, EQ and effects
• Plug into a power outlet, or use with your USB Power Bank for hours of use on the go
• Fit it into a small spot on your desk and then tuck it in your pack for the next gig
Technical Specs
• 6 stereo 3.5 mm TRS inputs
• 12 mono tracks, 6 stereo tracks or something in between
• 3 independently controlled stereo 3.5 mm TRS outputs
• Lots of headroom with support Eurorack levels up to +/-5V inputs and outputs
• 3.5” touch screen, 4 knobs, 8 navigation buttons and 3 transport buttons
• 3 effects: reverb, delay and compressor
• Records and plays back 48k, 24-bit audio WAV files
• 4 band EQ per track
• MIDI In and Out for beat syncing effects
• Dimensions: 14 cm x 13 cm x 5 cm, 450 grams
• Durable metal case
What's included:
bluebox
USB power adapter and USB power cable
USB B Splitter Cable
2 x MIDI Adapters Type B Male 3.5mm TRS to Female 5 pin DIN
micoSD Card
Quick Start Guide
Dimensions and Weight
14 cm x 13 cm x 5 cm
450 g (Packaging weight: approx. 850 g)
Country of origin: China
