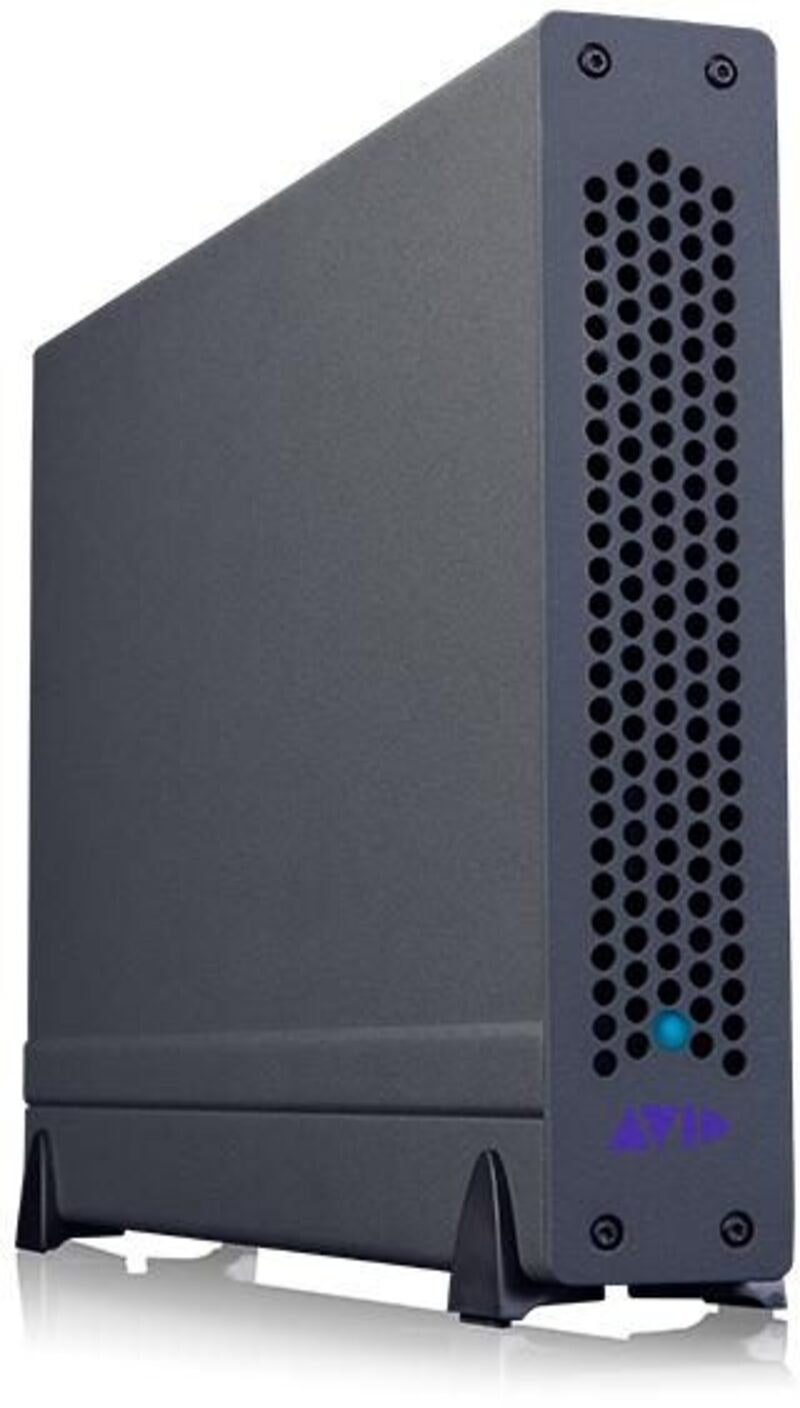

| Form factor | Desktop | ||
| PCIe connectivity | One expansion slot for a Pro Tools | HDX PCIe card (sold separately) | ||
| Thunderbolt connectivity | Two Thunderbolt 3 ports—one for computer connection and one for daisy-chaining up to five additional Thunderbolt/USB devices | ||
| USB connectivity | One USB 3.0 port on the front panel of the rackmount chassis | ||
| Bandwidth |
Thunderbolt interface: 40 Gbit/s PCIe interface: 2,750 MB/s |
||
| Power supply | 96W | ||
| Operating temperature | 32º–95º F (0º–35º C) | ||
| Dimensions (H x W x D) |
1U rack Desktop chassis (with feet): 9.4 x 2.2 x 14.5 inches (238 x 57 x 368 mm) |
||
