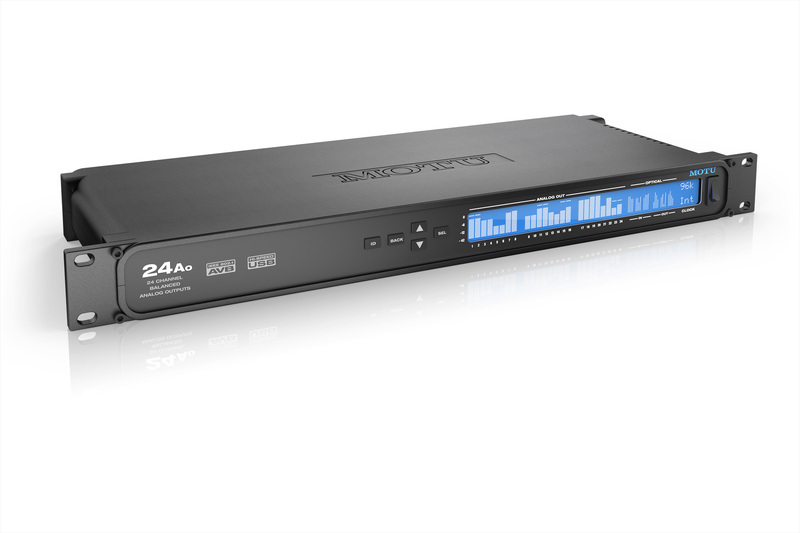

MOTU 24Ao
Artikkelnummer 104471724x48 I/O with 24 analog out, 48-ch mixing, DSP & AVB-TSN networking
- Superb audio quality:
Employs the same industry-recognized analog design as MOTU's groundbreaking 1248, 8M and 16A audio interfaces.
- 72 simultaneous audio channels:
24 high-quality, balanced analog inputs (24Ai) or outputs (24Ao) on three banks of multi-channel connectors (D-sub and Phoenix), plus three banks of 8-channel ADAT optical for 24 analog channels and 48 digital channels.
- Universal connectivity:
Connects to a computer with standard AVB Ethernet or audio class compliant high-speed USB 2.0 (compatible with USB 3.0 and iOS). Discovery app and web app software works alongside any host audio software.
- On-board DSP with mixing and effects:
Flexible 48-input digital mixer modeled after large format mixing consoles, with 12 stereo busses and DSP effects, including reverb, 4-band EQ, gate, and compression.
- 32-bit floating point processing:
DSP-driven mixing and effects engine delivers virtually unlimited headroom and the utmost in sound quality.
- Modeled vintage effects processing:
Classic reverb. Compression modeled after the legendary LA-2A compressor. EQ modeled after British analog console EQs.
- System expansion:
Add a 2nd MOTU AVB interface (24Ai, 24Ao, 1248, 8M or 16A) with a simple Cat-5e ethernet cable. Connect up to five MOTU interfaces using a MOTU AVB Switch (sold separately).
- AVB audio networking:
Build a network with multiple interfaces and computers using standard AVB switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point). Stream hundreds of audio channels among devices and computers on the network.
- Matrix routing and splitting:
Send any input to any output, or multiple outputs. Includes routing to and from the computer, plus any devices on the AVB network.
- Web app control:
Control on-board DSP, mixing, device settings, and network audio routing from web app software running in your favorite browser on a laptop, tablet or smart phone connected by wire or Wi-Fi to your local area network.
- Stand-alone mixing with wireless control:
Connect an Apple Airport™ or other Wi-Fi router directly to the 24Ai or 24Ao with a standard Ethernet cable and control powerful mixing and DSP effects from your smart phone or tablet, without a computer. Great for live sound mixing.
- ADAT digital I/O:
Use the 24Ai or 24Ao as a 24-channel optical expander for other gear. 24 channels at 44.1/48 kHz or 12 channels at 88.2/96 kHz.
- Comprehensive metering:
The large backlit 324 x 24 LCD lets you view all signal activity at a glance with detailed metering for all analog and digital I/O. Access hardware settings from a simple and convenient menu.
- AudioDesk:
Includes AudioDesk workstation software for Mac and Windows with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering.
