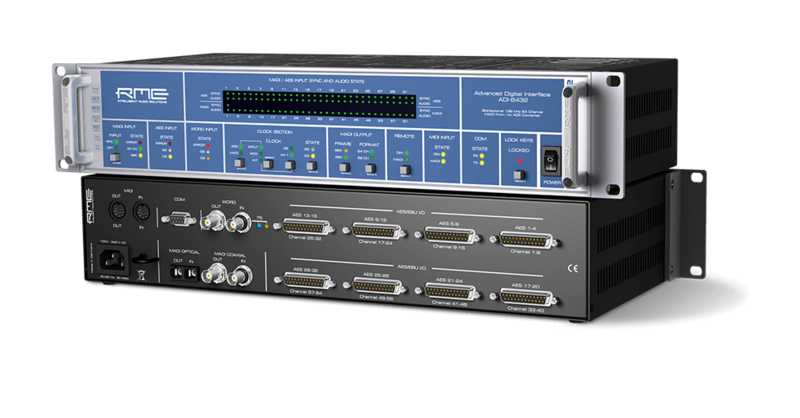

RME ADI-6432 R

Artikkelnummer 1076853

Bidirectional 64-Channel MADI/AES Format Converter with Redundant Power Supply

Bestillingsvare

Betal direkte, faktura eller delbetaling - Lagre kort og bankkonto - Enkelt og trygt - Klarna kjøperbeskyttelse

Kr 43790/stk

Redundant Power Supplies
Input MADI: 1 x BNC, 1 x optical
Input AES/EBU: 32 x, 4 x per D-sub connector, transformer balanced, highly sensitive input stage (< 0.3 Vpp), SPDIF compatible
Output AES/EBU: 32 x, 4 x per D-sub connector, transformer balanced, 4 Vpp
Input word clock: BNC, Signal Adaptation Circuit (functional from 1.2 Vpp)
Output word clock: BNC, low impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof
MIDI input and output: via two 5-pin DIN jacks
COM port: RS232 via 9-pin D-sub, 9600/19200/115200 Baud
Sync sources: MADI, AES, word clock, internal
Varipitch: by input signal or word clock
Sample frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (sync/word clock)
Sample rate range: MADI: 32 - 192 kHz, word clock: 27 kHz - 200 kHz, AES: 28 kHz - 200 kHz
Jitter: Internal Clock < 1 ns, Word Clock In < 2 ns, AES/EBU In < 2 ns
Jitter suppression: >30 dB (2.4 kHz)
Jitter sensitivity: all PLLs operate error-free even at 100 ns
Power supply: Internal switching mode PS, 100V - 240V AC, 20 Watt
Dimensions: (WxHxD) 483 x 88 x 200 mm
Warranty: 2 years
