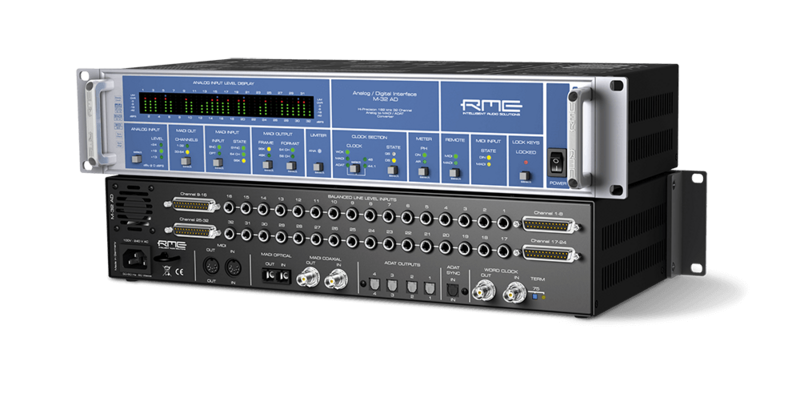

RME M-32 AD
Artikkelnummer 107685632-Channel Analog to MADI/ADAT Converter
Bestillingsvare
Betal direkte, faktura eller delbetaling - Lagre kort og bankkonto - Enkelt og trygt - Klarna kjøperbeskyttelse
Kr 43890/stk
- Input AD: 1/4" TRS jack and 25 pin D-sub, servo balanced, completely symmetrical audio path
- Output AD: 4 x ADAT optical, 1 x MADI optical/coaxial
- Dynamic Range AD: 113 dB RMS unweighted, 116 dBA
- THD AD: < -110 dB (< 0.00032 %)
- THD+N AD: < -104 dB (< 0.00063 %)
- Crosstalk AD: > 130 dB
- Input level for 0 dBFS: +24 dBu, +19 dBu, +13 dBu
- Frequency response AD, -0.1 dB: 10 Hz - 23.2 kHz (sf 48 kHz)
- Frequency response AD, -0.5 dB: < 5 Hz - 45 kHz (sf 96 kHz)
- Frequency response AD, -1 dB: < 5 Hz - 80 kHz (sf 192 kHz)
- Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz, variable (Sync/WC)
- Jitter: Typical < 1 ns for internal, Word Clock, ADAT and MADI input
- Jitter sensitivity: all PLLs operate error-free even at 100 ns
- Jitter suppression: > 30 dB (2.4 kHz)
- Power supply: Internal switching mode PS, 100V - 240V AC, 60 Watt
- Dimensions: (WxHxD) 483 x 88 x 200 mm
