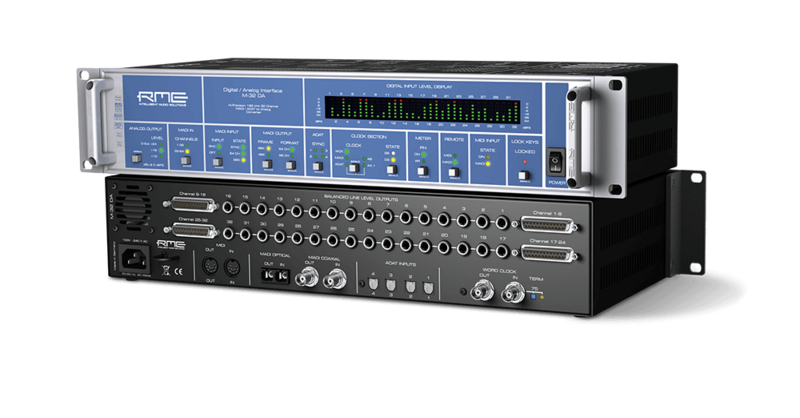

RME M-32 DA

Artikkelnummer 1076857

32-Channel MADI/ADAT to Analog Converter

Bestillingsvare

Betal direkte, faktura eller delbetaling - Lagre kort og bankkonto - Enkelt og trygt - Klarna kjøperbeskyttelse

Kr 41790/stk

Input DA: 4 x ADAT optical, 1 x MADI optical/coaxial
Output DA: 1/4" TRS jack servo balanced, up to +21 dBu. 25 pin D-sub, balanced, up to +24 dBu
Dynamic Range DA (SNR): 114 dB RMS unweighted, 118 dBA
THD DA: < -104 dB (< 0.00063%)
THD+N DA: < -100 dB (< 0.001%)
Crosstalk DA: > 110 dB
Frequency response DA, -0.5 dB: 5 Hz - 22 kHz (sf 48 kHz)
Frequency response DA, -0.5 dB: < 5 Hz - 34 kHz (sf 96 kHz)
Frequency response DA, -1 dB: < 5 Hz - 50 kHz (sf 192 kHz)
Input level for 0 dBFS: +24 dBu, +19 dBu, +13 dBu
Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz, variable (Sync/WC)
Jitter: Typical < 1 ns for internal, Word Clock, ADAT and MADI input
Jitter suppression: >30 dB (2.4 kHz)
Jitter sensitivity: all PLLs operate error-free even at 100 ns
Power supply: Internal switching mode PS, 100V - 240V AC, 60 Watt
Dimensions: (WxHxD) 483 x 88 x 200 mm
