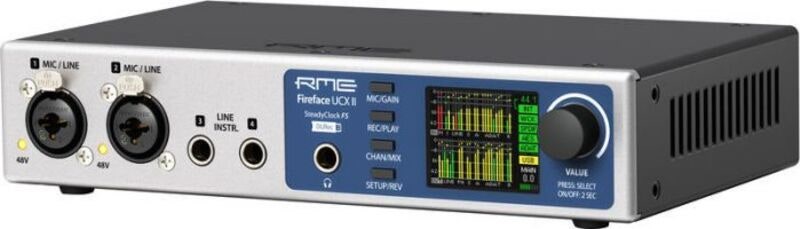

RME Fireface UCX II

This unique audio system is capable of transferring analog and digital audio data directly to Windows and Mac computers. The latest Plug and Play technology guarantees a simple installation, even for the inexperienced user. Numerous unique features like a well thought-out Settings dialog and an integrated routing solution realize a quick, comfortable and efficient operation of the Fireface UCX II. The Fireface UCX II houses two mic/line preamps in XLR combo configuration on the front panel, along with two digitally controlled line/instrument inputs, followed by a headphone jack, various control buttons, a display, and the main volume knob. At the rear is a set of ten analogue balanced line inputs and outputs, MIDI I/O, ADAT I/O, AES/EBU and SPDIF I/O, USB 2.0 as well as a switchable word clock I/O. With the SteadyClock FS, the Fireface UCX II features the latest clock and jitter rejection technology from RME. Based on a femtosecond clock, SteadyClock FS reduces the intrinsic jitter when converting from and to analogue over all digital formats to a new all-time low.

• USB 2. 0 audio interface
• 24-bit / 192 kHz AD/DA converter
• 20 input and output channels
• SteadyClock FS; stand-alone functionality
• DURec feature: Integrated digital recorder for all inputs and outputs directly to USB storage devices via rear USB port (allows recording to USB sticks or hard drives with up to 2 TB capacity)
• TotalMix mixing / routing software; DigiCheck software
• Class Compliant; Compatible with optional ARC USB remote control (not included)
• DC-coupled outputs - CV/Gate voltage control
• +48V phantom power
• Colour display
• Connectors
• 2x Mic/Line combo input XLR/jack 6.3 mm, 2x instrument/line input 6.3 mm jack, 4x line input 6.3 mm jack, Stereo Headphone out 6.3 mm jack, ADAT input and output, word clock input and output, AES/EBU + S/PDIF coax, MIDI input and output
