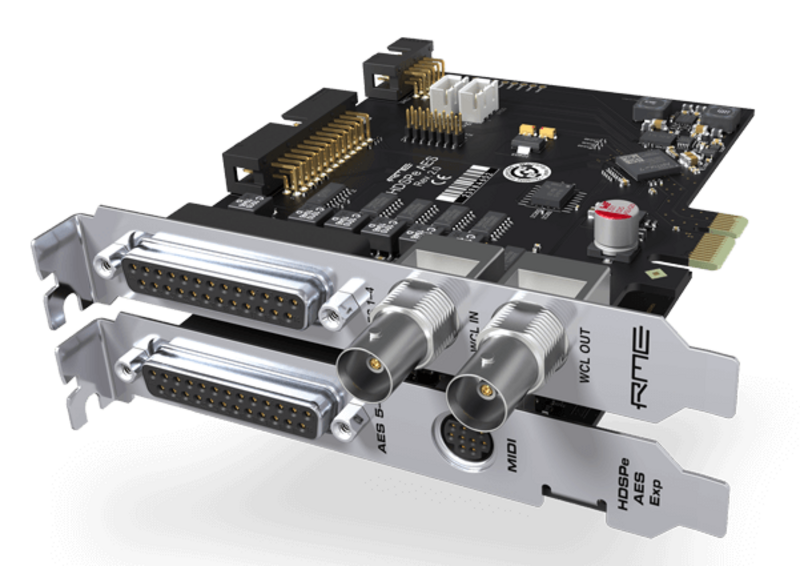

RME HDSPE AES
Artikkelnummer 103007732-Channel AES/EBU PCI Express Card
Bestillingsvare
Betal direkte, faktura eller delbetaling - Lagre kort og bankkonto - Enkelt og trygt - Klarna kjøperbeskyttelse
Kr 9250/stk
- 1-Lane PCI Express Endpoint device (no PCI Express to PCI Bridge), revision 1.1.
- 2.5 Gbps line speed
- Packet-based full-duplex communication (up to 500 MB/s transfer rate)
- All settings: changeable in real-time
- Automatic and intelligent master/slave clock control
- Enhanced Zero Latency Monitoring for latency-free submixes and perfect ASIO Direct Monitoring
- Sync sources: 8 x AES, word clock, internal
- Varipitch: by input signal or word clock
- Sample rates: 32 kHz up to 192 kHz, variable (Sync/word clock)
- Sample rate range: AES: 28 kHz - 204 kHz, word clock: 28 kHz - 204 kHz
- Jitter: < 1 ns, internal and all inputs
- Jitter sensitivity: PLL operates even at 100 ns Jitter without problems
- Comes with DIGICheck: the ultimate measurement, analysis and test tool
- Input 8 x AES, 2 x MIDI, word clock (BNC)
- Output 8 x AES, 2 x MIDI, word clock (BNC)
- Input word clock: BNC, Signal Adaptation Circuit (functional from 1.2 Vpp input signal), termination via jumper
- Output word clock: BNC, low-impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof
- MIDI input and output: via four 5-pin DIN jacks
