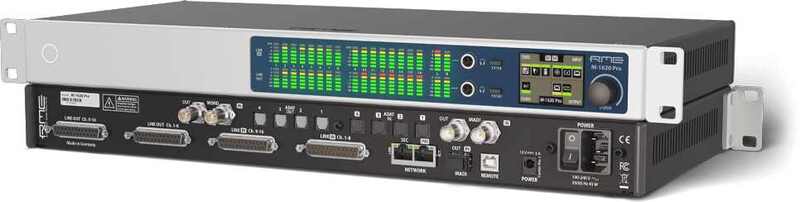

RME M-1620 Pro D

The RME M-1620 Pro D converts 16 analog line-level signals (per channel switchable up to +24 dBu) to and from MADI, ADAT and Dante network technology. This innovative unit is designed with a newly developed front panel that combines LED level meters with a display and includes two separate headphone outputs for monitoring - all within a single-height 19-inch rack device. Cutting-edge converters and flexible internal routing place it at the forefront of any audio network.

• 16 Channel AD, 20 Channel DA converter with ADAT, Dante, MADI, AVB
• Transmits and receives up to 128 channels at 48 kHz (96 channels at 96 kHz, 64 channels at 192 kHz) with a predefined, fixed latency
• Transmission of status and configurable options via ATDECC (IEEE 1722.1) in the network
• 2.54" TFT display
• LED meter
• Integrated routing matrix
• Type: 19" 1 U

Connectors:

• 16 Line input and output: 4 Sub-D25 (up to +24 dBu)
• 2 Stereo headphone outputs: 6.3 mm jack
• 2 MADI inputs and outputs BNC
• 4 ADAT inputs and outputs
• 2 RJ45 GigE
• Word Clock input and output BNC
• MIDI input and output
• USB 2.0 (for remote control)
