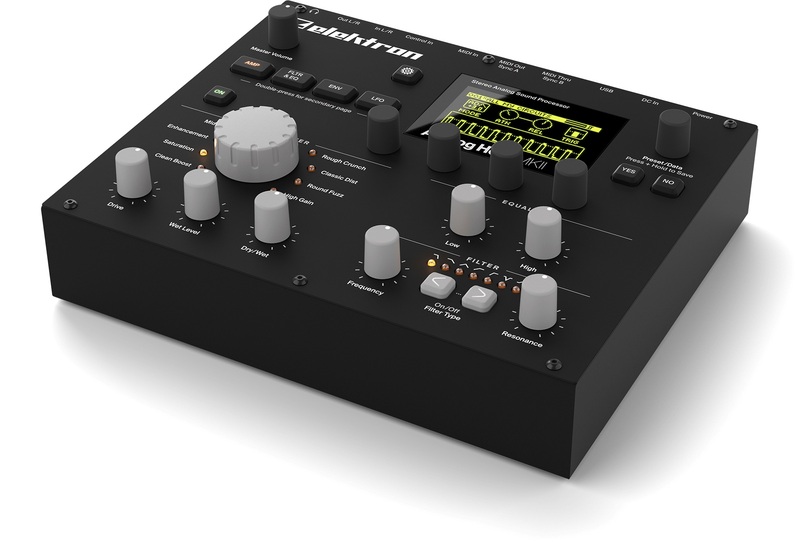

Elektron Analog Heat MKII

Sound processing

• 8 × Stereo analog distortion circuits
• 1 × Stereo analog multi-mode filter (7 filter types)
• 1 × 2 band adaptable stereo analog EQ
• 1 × Assignable envelope generator/envelope follower
• 1 × Assignable LFO

Storage

• 128 user preset slots

Hardware

• 128×64 pixel OLED screen
• MIDI In/Out/Thru with DIN Sync out
• 2 × 1/4″ balanced audio out jacks
• 2 × 1/4″ balanced audio in jacks
• 1 × 1/4″ stereo headphones jack
• 2 × 1/4″ CV/Expression pedal input jacks
• 48 kHz, 24-bit D/A and A/D converters
• Flash-EEPROM upgradable OS
• Hi-speed USB 2.0 port

Audio outputs

• Headphones out level: +19 dBu peak
• Headphones output impedance: 36 Ω
• Impedance balanced main outputs level: +19 dBu peak
• Main outputs impedance: 440 Ω unbalanced

Audio inputs

• Balanced audio input level: +19 dBu peak
• Audio input impedance: 39 kΩ

Control inputs

• Input level: -5 V – +5 V
• Accepts CV, Expression pedals, Foot switches

Physical specifications

• Sturdy steel casing
• Dimensions: W215×D184×H63 mm (8.5×7.2×2.5″) (including audio outputs, knobs and rubber feet)
• Weight: approximately 1.5 kg (3.3 lbs)
• 100×100 mm VESA mounting holes

Miscellaneous

• Overbridge enabled (available later)
• 3 year Elektron warranty

Included in the box

• Power Supply PSU-3b
• Elektron USB cable
