Bettermaker Mastering Equalizer
Artikkelnummer 1077311Stereo/MS analog Mastering Equalizer with digital recall including: Passive EQ section, 4 Parametric filters, RTA metering, touch screen display and more.
– 100% analog audio signal path
– USB connectivity with MAC/PC
– all parameters are digitally controlled via touchscreen and/or DAW (with dedicated plugin)
– 399 presets with unique names, total recall, A/B comparison

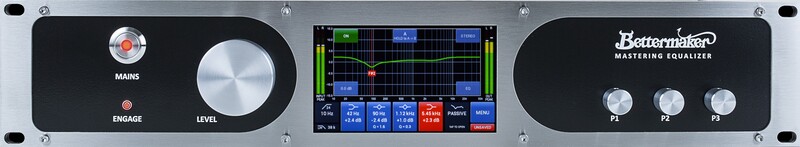

– 5-inch capacitive touchscreen with backlight, four encoders with push-button action for ease of
control
– stereo, dual-mono and mid/side operation modes with focus function
– stereo 12 or 24dB/oct high-pass filter with adjustable cutoff frequency (10Hz – 240 Hz; extended
to 6Hz with the resonance enabled)
– four stereo parametric filters with 15dB boost/cut range, variable Q (0.2 – 7):
– EQ1: 22Hz – 470Hz (bell/shelf)
– EQ2: 90Hz – 2kHz (bell)
– EQ3: 480Hz – 10kHz (bell)
– EQ4: 1kHz – 23kHz (bell/shelf)
– stereo passive equalizer with extended hi-boost section (air bands: 20 and 28 kHz)
– stereo, 12dB/oct low-pass filter with adjustable cutoff frequency (2 – 38 kHz)
– adjustable output level (+/- 10dB)
– Frequency Search, Gain Lock, Note and Auto-Q functions
– on-board measurement of PEAK/RMS levels and RTA analyzer
– on-screen live representation of the equalization curve
Digital Section
The sound of the Mastering Equalizer is of course based on the quality of its analog filters, precisely matched capacitors and inductors. But all the control and user interactions are performed in the digital domain. This allows us to incorporate options and possibilities not found in any standard analog equalizers:
- Save and recall presets from on-board memory (400 slots available)
- Instant reset of all parameters
- Rapid, precise and repeatable adjustments
- Precisely linked stereo operation with the ease of a single control
- DAW automation and recall of all available parameters
The digital section of the Mastering Equalizer is based around high speed, 32-bit micro-controller, with dedicated firmware programmed into its memory (with the possibility of updating the firmware via USB connection). It controls the parameters af all analog filters, watches over the user interface, presets management, audio measurement, USB connectivity and other Mastering Equalizer functions.
