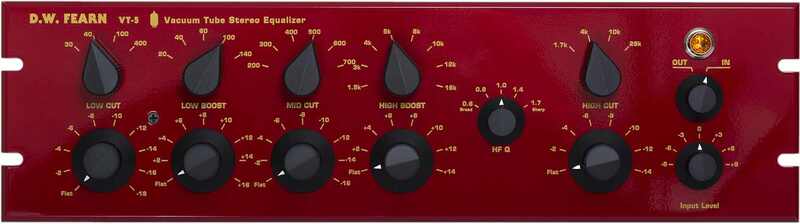

D.W. Fearn VT-5

Specifications

• Input 600 ohms

• Input Load Impedance 40k ohms

• Minimum Input Level -20 dBm nominal

• Maximum Input Level @ 20 cps +25 dB 0 dB

• Gain ± 0.5 dB 20 cps to 20 kc -3dB@0.5cps&80 kc

• Frequency Response <0.10% 20 cps to 20 kc

• Intermodulation Distortion SMPTE: <0.80%

• Signal to Noise Ratio 82 dB minimum low-Z, transformer balanced

• Output +22 dBm unterminated

• Maximum Output Level 120 or 220 VAC 50/60Hz, 85 W

• Dimensions 19” (48.26cm) W 5.25” (13.34cm) H 9” (22.86cm) D (VT-2 13” 22.9cm)

• Weight 20 lbs (9.1 kg)

Features

• Frequency response: +/- 0.2 dB 20 Hz to 20 kHz

• THD: less than 0.06%

• Signal-to-Noise: better than 80 dB

(All controls are independent and can be used in any combination)

• Low Cut at 30, 40, 100, or 400 Hz, 0 to -18 dB shelving in 2 dB steps

• Low Boost at 20, 40, 60, or 140 Hz, 0 to 16 dB shelving in 2 dB steps

• Mid Cut at 200, 300, 400, 500, 600, or 700 Hz, 0 to -16 dB in 2 dB steps

• High Boost at 1.5, 3, 4, 5, 8, 10, 12, or 16 kHz, 0 to 12 dB in 2 dB steps

• High Bandwidth Q of 0.6, 0.8, 1.0, 1.4, or 1.7

• High Frequency Cut at 1.5, 3.5, 8, or 28 kHz, 0 to -14 dB shelving in 2 dB steps

• Gain adjustable from -9 to +9 dB, referenced to +4 dBm, in 3 dB steps

  NOTE: Frequency is specified in cycles per second (cps) or kilocycles per second (kc). These units correspond to Hz and kHz respectively. Measurements made with -50 dBm input and 50 dB gain in a 22 cps to 22 kc bandwidth.
