Redco Audio Little Red Cue Box

NOTE: Used Headphone Distribution from Redco. See pictures for condition. 6 month warranty.

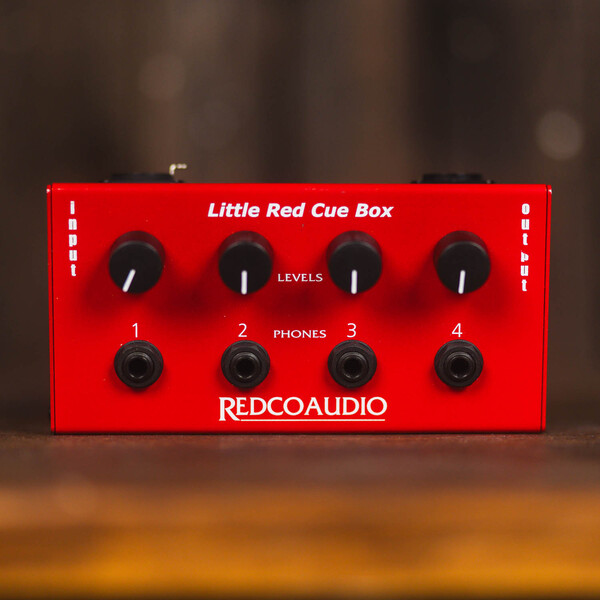

Redco Little Red Cue Box

The Redco Little Red Cue Box is a professional audio monitoring unit that allows you to control up to four stereo headphones separately. A common use of the Cue Box is for musicians who need to listen to the cue mix when recording in a studio.

You can connect up to four pairs of dynamic headphones to the headphone outputs via 1/4” stereo phone plugs. The volume on each pair of headphones can be adjusted individually, giving each musician a comfortable listening level while listening to the same cue mix. This is especially important when recording background vocals, where multiple singers share the same microphone and cue mix.

Redco Little Red Cue Box – Features

• Full stereo functionality
• Four headphone outputs
• Individual level controls for each output
• XLR input and output for daisy chaining via standard microphone cables
• Durable red powder coated finish
• Threaded bottom for mounting on microphone stands

Redco Little Red Cue Box – Specifications

Amplifier input: 3-pin XLR female connector

Pin 1: Common ground
Pin 2: Right cue amplifier
Pin 3: Left cue amplifier

Cue Box output: 3-pin XLR male connector

• The signal goes straight through from the input, which allows daisy chaining of additional Little Red Cue Boxes for more headphones.
• The number of Cue Boxes that can be daisy chained depends on the impedance of the headphones.
• Connection is made via standard microphone cables.

Headphone Outputs: 1/4” stereo jack

• Designed for up to four dynamic headphones
• The outputs are wired in parallel but have individual rotary volume controls
