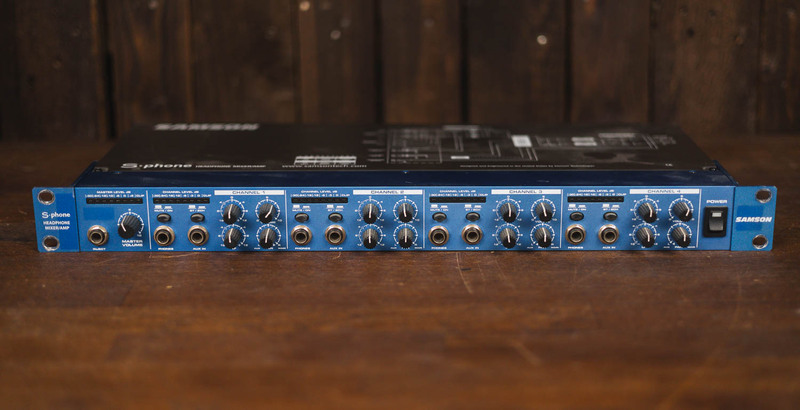

Samson S-Phone

NOTE: Used headphone amplifier from Samson. See pictures for condition. 6 month warranty.

S-phone

Headphone Mixer/Amplifier

The S-phone is a versatile headphone amplifier in a rack format (1U) with four channels, packed with advanced features that provide great flexibility for monitor and cue mixing.

The main input has a level control and LED meters to control and display the overall stereo signal. Each channel in the S-phone has three headphone outputs with a common volume control and individual level meters.

A convenient stereo aux input is provided on each channel, so that individual line signals from direct or bus outputs can be mixed with the main input.

The balance control adjusts the ratio between main and aux signal, or left/right balance (depending on the setting of the ST/2CH switch), making it possible to fine-tune each headphone mix to the needs of the listener ("More Me").

For even more sound control, there is also a 2-band EQ on each channel. An additional stereo aux input is provided on the front panel to send a second signal to all headphones.

Features / Specifications

• 4-channel headphone mixer/amplifier
• Two stereo main inputs + stereo link output
• 8-segment LED meters on each channel and master
• 2-band equalizer on each channel
• Three headphone outputs per channel (one on the front, two on the rear)
• Aux input with balance control provides four "More Me" mixes
• Mute and stereo/2-channel switch on each channel
• Maximum output power per channel – regardless of headphone impedance
