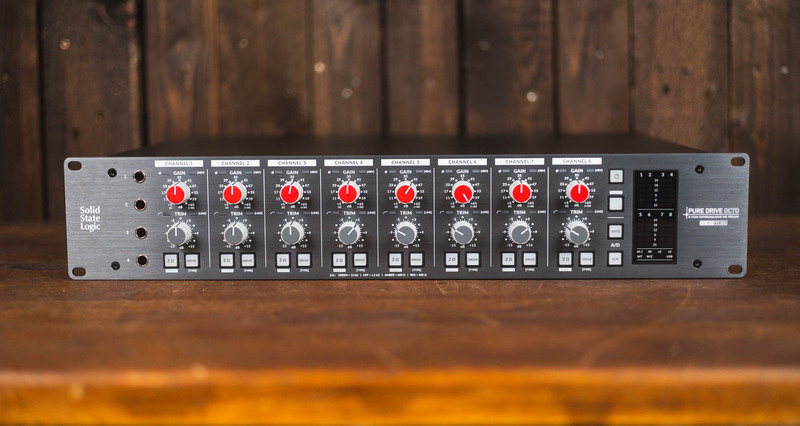

SSL Pure Drive Octo

NOTE: B-stock copy of Pure Drive Octo from SSL. Scraches underneath after rack mounting. See pictures for additional condition. Full warranty.

Key Features

8-channel high-performance PureDrive mic preamps

+48V phantom power, polarity reversal and 3rd-order high-pass filter

Stepped Gain control up to +65 dB Gain

31-step Trim control with precise 1 dB increments – overdrive the signal with Gain and then adjust to an appropriate level with Trim

3 modes for each preamp – Clean, Classic Drive and Asymmetric Drive

Mic/Line input switching

Mic via XLR

Line via optional TRS Jack or dedicated D-Sub connector

4 Hi-Z/DI instrument inputs on the front panel with automatic input detection

4 mic preamp impedance options – explore new tonal possibilities with dynamic and ribbon microphones

Balanced analog outputs/insert sends for external processing

+24 dBu professional line-level insert returns/ADC inputs

Analog to digital connectivity via ADAT, AES and USB

Ability to switch ADAT and AES connections to take audio from DAW outputs (USB) instead of the A/D converter

USB sound card mode: OCTO – 8 in / 24 out (@44.1/48 kHz) ; 8 analog / 8 AES + 16 ADAT outputs

Stepped potentiometers and digitally controlled analog electronics for precision, stereo matching and easy recall

Up to 192 kHz and 32-bit conversion, professional I/O levels (+24 dBu = 0 dBFS)

Selectable Auto-Sleep mode

Auto-ranking Wordclock In and Out
