Sonarworks SoundID Reference for Speakers & Headphones and Apollo Monitor Correction Add-on bundle

Key features of SoundID Reference

• Reliable, consistent, easy to use calibration software for all of your audio system:
  • Ready-to-use headphone calibration for 500+ models
  • Accurate speaker measurements and calibration for stereo systems
  • 3 filter modes: Zero Latency, Mixed and Linear Phase
  • Additional DSP processing controls: Mono, Dry/Wet and Safe Headroom
  • MIDI mapping in the SoundID Reference app for various controls
  • User Presets in the SoundID Reference app for switching quickly between predefined output device/channel pair combinations
• Control your target sound:
  • Flat target curve used by over 200'000+ music creators globally
  • Custom Target: target curve adjustments in real time
  • Translation Check: simulate 20+ different devices and environments
• High performance and flexibility:
  • Zero latency plugin DSP
  • Near-zero latency system-wide calibration on Windows
  • Native support for Apple Silicon (M-series chip devices)
• Export your calibration profile to supported hardware:
  • Apply calibration directly on DSP-enabled hardware
  • 10+ device integrations available (audio interfaces, speakers, Dolby Atmos Renderer, and more)
  • See the exact list of calibration profile types and supported target devices here: SoundID Reference Integrations

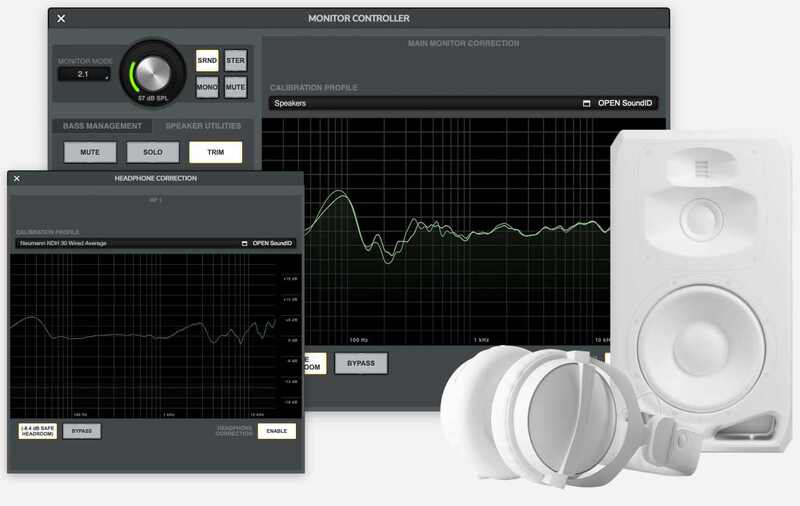

Key features of Apollo Monitor Correction Add-on

• Speaker and headphone calibration running directly on Apollo X hardware.
• Multiple outputs calibrated simultaneously: one speaker profile, and up to two headphone profiles (depending on the Apollo X model used)
• Calibrated bass management for stereo speaker setups with subwoofer
• Supported target modes include: Flat, Dolby Atmos Music curve, user Custom Target, and various device emulation targets via Translation Check.
• Near-zero latency integrated performance.

What's included

• Activation key for the SoundID Reference product license: the product can be activated and used on 3 devices
• Activation key for the Apollo Monitor Correction Add-on product license: the product can be activated and used on 3 devices
• SoundID Reference standalone app for speakers and headphones (ASIO, WASAPI, APO, HAL)
• SoundID Reference DAW plugin for speakers and headphones (AU, VST2, VST3, AAX)
• Averaged profiles for 500+ supported headphone models
• Apollo Monitor Correction Add-on for integrated functionality with Apollo X devices

System requirements

• A supported Apollo X audio interface:
  • Apollo X Gen 1: Apollo Twin X Duo/Quad, Apollo Twin X USB, Apollo x4, Apollo x6, Apollo x8, Apollo x8p, Apollo x16
  • Apollo X Gen 2: Apollo Twin X Duo/Quad, Apollo x4, Apollo x6, Apollo x8, Apollo x8p, Apollo x16, Apollo x16D
• A supported operating system
  • macOS 11 Big Sur, 12 Monterey, 13 Ventura, 14 Sonoma
  • Windows 10, 11
• UAD Console app v1.2.1 (or newer) installed, and UAD-2 Software v11.5.1 (or newer) installed
• 2.0 stereo speaker system (the Apollo Monitor Correction Add-on also supports calibrated bass management for 2.1 systems)
• Sonarworks supported or Sonarworks individually calibrated headphones
• Stable internet connection (offline use not supported)
• SoundID Reference Measurement Microphone, or Sonarworks XREF 20Measurement Microphone
•  XLR to XLR audio cable
• Audio interface requirements during the speaker measurement process:
  • +48v Phantom Power support
  • The same audio interface must be used for input/output
  • The audio interface must support and be set to one of the following sample rate formats: 44.1kHz, 48kHz, 88kHz, 96kHz, 192kHz
  • The audio hardware setup must consist of a single external hardware device only (additional preamp units are supported)
