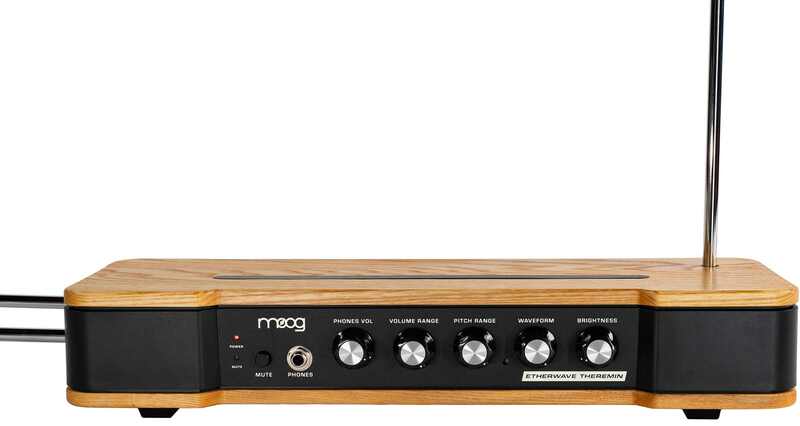

Moog Etherwave Theremin

Artikkelnummer 1082703

Etherwave Theremin in new Sleek Design

Sound Source: Analog Heterodyning Oscillator Sound Modifier: Analog VCA
Pitch Antenna: Performance control of the frequency range, from approximately 0 Hz to 4.2 kHz, based on hand proximity
Volume Antenna: Performance control of the dynamic range of over 70dB, based on hand proximity
Mute Button: On: Audio Out muted; Phones Out active Off: All outputs active
Switch Jack: 1/4" jack for momentary footswitch (not included) controls Mute function
Power: LED indicator (front panel); Button (rear panel)
Headphones: 1/4" output jack
Audio Out: 1/4" Audio output jack
CV Out: 3.5mm jacks for Volume CV Out, Pitch CV Out, Gate CV Out
Power Supply: Style: wall adapter; barrel connection; center-pin positive Input: 100 - 240VAC; 50 Hz - 60 Hz
Output: +12VDC; 2A
