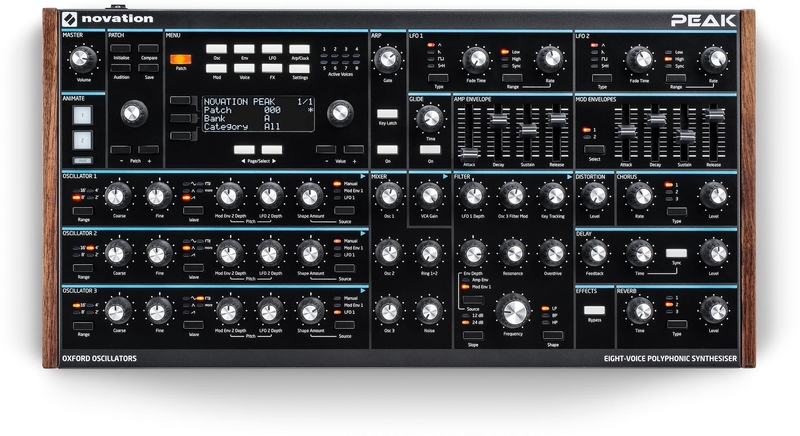

Novation Peak

Peak sounds warm and rich with filthy, biting overdrive. It’s an eight-voice desktop polyphonic synthesiser with three New Oxford Oscillators for each voice. The synth has a resonant multi-mode analogue filter for each voice, and three distortion points in an analogue signal chain.

Product Hardware Specifications

• 42 Control knobs
• 8 35mm Sliders
• 1 Volume knob
• 2 Data encoders
• Rubberised knob caps with spun metal discs
• 30 Function buttons (not lit)
• 16 Function buttons (lit)
• 2 Animate buttons plus hold button
• 90 Indicator LEDs
• OLED display
• Kensington Security Slot
• Power switch
• Power supply connector
• USB socket for system / MIDI comms only (no bus-power)
• MIDI In / Out / Thru
• 2 1/4" jack socket for continuous or switched pedals
• 3.5mm jack socket for CV in
• 1/4" jack sockets for left and right outputs
• 1/4" jack socket for headphone output
• Metal chassis with American walnut wooden end cheeks
• Metal magnetic inset end pieces

Synth Engine

• 8 voice polyphonic (voice modes available unison etc.)
• Mono-Timbral
• 5 Voice Modes - Mono, MonoLG, Mono2, Poly, Poly2

Per voice

• 3 oscillators
• 1 noise generator
• 1 ring modulator
• 2 LFOs
• 1 Amp envelope and 2 mod envelopes
• 1 Filter

Waveforms include:

• Sine, tri, sawtooth, square / pulse plus 17 wavetables of 5 waveforms per row

Filter

• 1x State variable OTA filter per voice
• 12/24dB slope
• Low-pass / band-pass / high-pass
• Pre-filter overdrive
• Post-filter distortion

Modulation

• 16 modulation slots per patch
• Each slot has 2 sources to 1 destination

Mod sources (17)

• Direct (depth)
• Modulation wheel
• Aftertouch (polyphonic and channel AT)
• Expression pedal 1
• Expression pedal 2
• Keyboard velocity
• LFO1 positive
• LFO1 bi-polar
• LFO2 positive
• LFO2 bi-polar
• Amp envelope
• Mod envelope 1
• Mod envelope 2
• Animate 1
• Animate 2
• CV mod input bi-polar

Mod destinations (37)

• Oscillator 1-3 frequency, v-sync level, shape amount and level
• Noise source level
• Ring modulator output level
• Overal synth output level
• Filter drive, distortion, cut-off frequency and resonance
• LFO 1 and 2 frequency
• Amp env / mod env 1 / mod env 2 attack, decay and release
• FM Osc 1 -> osc 2, osc 2 -> osc 3, osc 3 -> osc 1 and noise -> osc 1
• Osc 3 -> filter cutoff frequency
• Noise -> filter cutoff frequency

Effects

• Analogue distortion
• Chorus - 3 types
• Delay with 16 types of delay sync, LP and HP damping, slew and stereo
• Reverb - 3 types

Misc

• Arpeggiator w/ key latch – 33 patterns
• Patch storage - up to 512 on hardware (ships with 256 factory patches)
• Glide
• All knobs (excl. volume), sliders and most buttons transmit and receive MIDI cc commands for external control and mapping

Software Compatibility

• Ableton Live Lite 9 is included
• Peak is a USB-MIDI class compliant device

Power Requirements

• Maximum power consumption 12V DC 1A

Product Dimensions

• 233mm (9.17") width x 464mm (18.27") depth x 70.5mm (2.78") height
