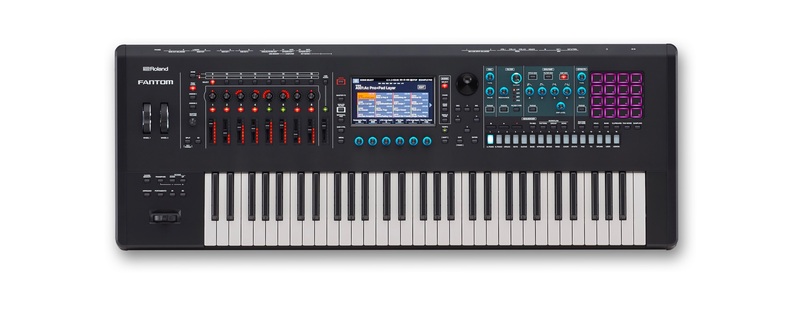

Roland Fantom-6

Version 2.5

• Virtual ToneWheel Organ
• Seamless integration with Ableton Live

Specifications:

-Keyboard

• FANTOM-6: 61 Keys (semi-weighted keyboard and channel aftertouch)

-Sound Generator

• ZEN-Core
• V-Piano Technology

-Parts

• 16 Zones(Internal + External)

-Scenes

• 128 Scenes x 4 Bank

-Tones

• Over 3,500 Tones
• Over 90 Drum kits

-Effects

• Multi-Effects: 16 systems, 90 types
• Part EQ: 16 systems
• Drum Part COMP: 6 systems
• Insertion Effect: 2 System, 90 Type
• Chorus: 8 types
• Reverb: 6 types
• Master Compressor
• Master EQ
• Mic Input Reverb: 6 types

-Analog Filter

• STEREO
• Type: LPF1/LPF2/LPF3/HPF/BPF/Bypass
• Drive
• Amp

-Sequencer

• MIDI Tracks: 16(Internal/External)
• Group:16
• Pattern: 8 (per each Track)
• Pattern Length: 32 mesures
• Recording Method: Realtime recording, Step recording, TR-REC

-Sampler

-PAD Sampler

• Format: 16-bit linear, 44.1/48kHz, WAV/AIFF import supported
• Maximum Polyphony: 8
• Number of Samples: 16 Pads x 4 Banks

-Rhythm Pattern

-Arpeggiator

-Chord Memory

-Controllers

• Pitch Bend/Modulation Lever
• Assignable Switch x 2 (S1/S2)
• Control Knob x 8
• Slider x 8
• USB Audio Slider
• Wheel x 2
• Function Knob x 6
• Sound Modified Knob x 11
• 4 x 4 Pad

-Display

• Graphic Type, 7", Wide VGA (800 x 480 dots), backlit LCD (Color/Touch screen)

-Connectors

• Headphones Jack: Stereo 1/4-inch phone type
• MAIN OUT Jacks (L/MONO, R) (1/4-inch phone type)
• MAIN OUT Jacks (L, R) (XLR type)
• SUB OUT1 Jacks (L, R) (1/4-inch phone type)
• SUB OUT2 Jacks (L, R) (1/4-inch phone type)
• ANALOG OUTPUT Jacks(1,2)(1/4-inch phone type)
• Mic/Line Input Jacks: (1,2) (1/4 inch phone type/XLR type)
• 2 x CV OUT, 2x GATE OUT
• FOOT PEDAL JackS(HOLD, CTRL1,CTRL2,CTRL3)
• MIDI connectors (IN, OUT1, OUT2/THRU)
• USB MEMORY Port
• USB COMPUTER Port (AUDIO/MIDI)
• 3 x External Device Port

-External Memory

• USB Flash drive (sold separately)

-Power Supply

• AC 117-240V 50/60Hz

-Power Consumption

• 50 W

-Dimensions

• FANTOM-6: 1,084 (W) x 403 (D) x 106 (H) mm
• FANTOM-7: 1,296 (W) x 403 (D) x 106 (H) mm
• FANTOM-8: 1,432 (W) x 439 (D) x 153 (H) mm

-Weight

• FANTOM-6: 15.3 kg
• FANTOM-7: 17.7 kg
• FANTOM-8: 27.7 kg

-Accessories

• Owner's manual
• Power Cord
