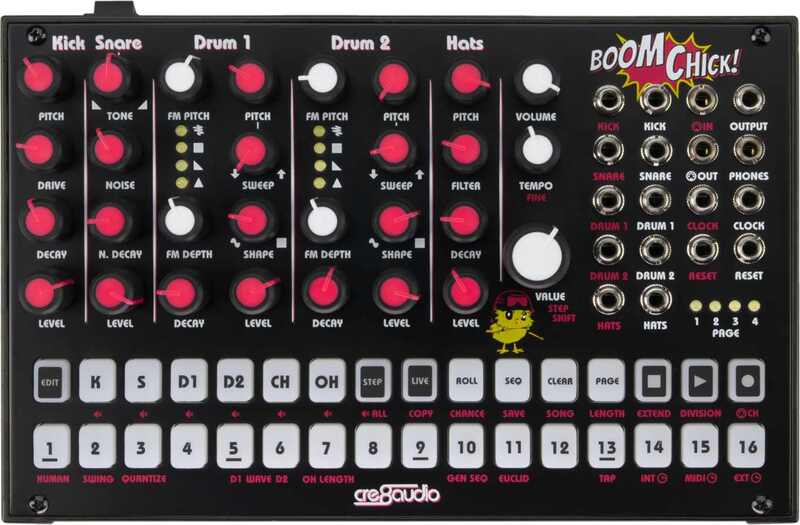

Cre8audio Boom Chick

Boom Chick, a revolutionary analog drum machine built on the warmth and character of Pittsburgh Modular’s newly designed analog drum circuits

• Drum Voices: 5 (Kick, Snare, Drum 1, Drum 2, Hats)
• Individual Drum Trigger Inputs
• Individual Drum Outputs
• 3.5mm Type A TRS MIDI In and MIDI Out
• Clock In and Clock Out
• Reset In and Rest Out
• Mono 3.5mm TS Line Output
• Dual Mono 3.5mm TRS Headphone Output
• Individual Drum Mutes
• 6 Channel 64 Step Drum Sequencer
• Step and Live Play Modes
• 64 Sequence Memory
• 16 Song Memory
• Sequencer Effects: Step Shift, Roll, Chance, Clear, Pattern Length, Pattern Extend, Clock Division, Humanize, Swing, Quantize, Generate Sequence, Euclidean Pattern Generator, Tap Tempo

• 207mm x 138mm x 61mm

• 826g

• Eurorack Compatible

• Can be used standalone in its included case or removed and used as a eurorack format module

• Specifications for when used as a eurorack module

  • Width when used as a module = 40hp

  • Depth = 30mm

  • 250mA power draw when running +12V rail

  • 200mA power draw when running -12V

• Included in the box - 1x Boom Chick, 1x Boom Chick wall-wart power supply, 1x 3.5mm to 5 pin (Type “A”) MIDI Din pigtail
