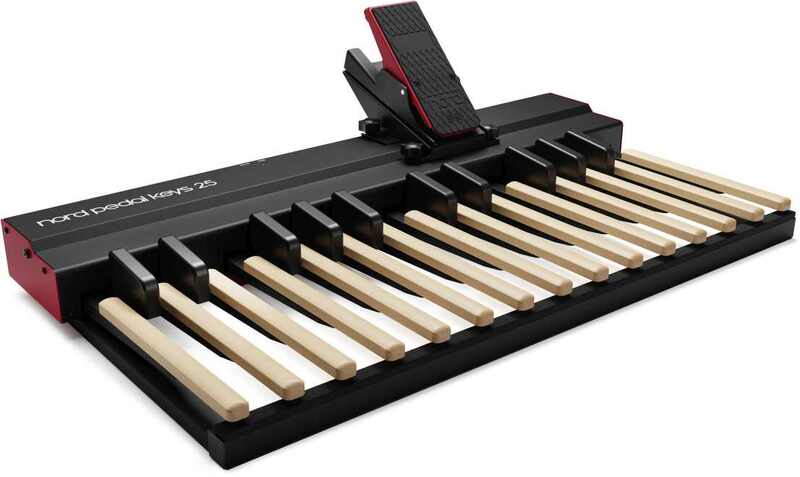

Nord Pedal Keys 25

The Pedal Keys 25 is compatible with all MIDI-enabled equipment. When connected to the Nord Organ 3 it is also phantom powered over MIDI, streamlining setup and reducing cable clutter.

An included Nord EP30 expression pedal is mounted on the top panel for comfortable, direct access and making assembly and disassembly of the unit quick and easy. The swell pedal’s friction can be be adjusted using the easily accessible hex screw inside the pedal, ensuring optimal responsiveness and control.

Key Features:

• 25 wooden keys
• Rugged and lightweight aluminum construction
• Included Nord EP30 expression pedal with adjustable resistance
• MIDI powered (with Nord Organ 3)
• Designed for accurate and expressive heel-toe playing
• C2 to C4 range / MIDI notes 36 to 60
  - Transmitting on MIDI Channel 3 at a fixed velocity (64)

Dimensions

• 980 (38.6") x 242 (9.5.6") x 611 (24.1") mm (W x H x D), with the swell pedal mounted in place.
• 15,5 kg (34lbs)

Included Accessories

• Assembly manual
• MIDI cable
• Power adapter, 9 volt DC (PSU)
