IGS Audio Rubber Bands 500 Mastering EQ
Artikkelnummer 1072046500-Series Stereo Pultec style EQ
Bestillingsvare
Betal direkte, faktura eller delbetaling - Lagre kort og bankkonto - Enkelt og trygt - Klarna kjøperbeskyttelse
Kr 13190/stk

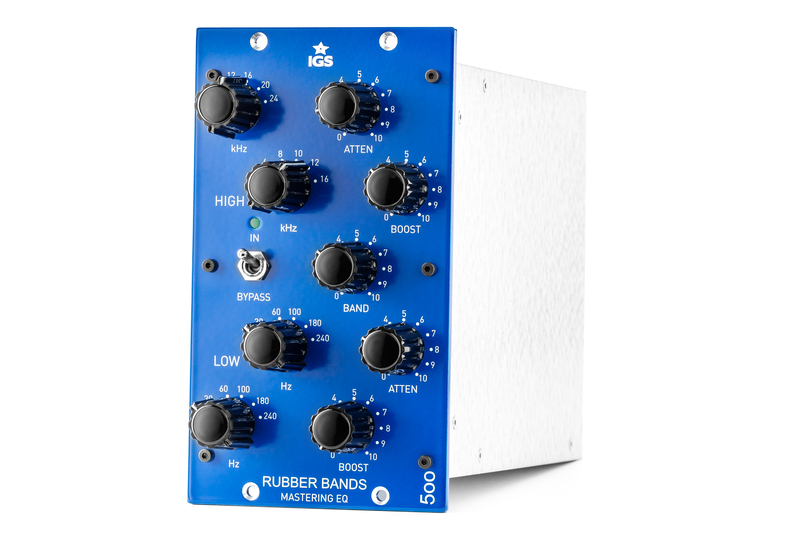

RB500ME is a stereo passive equalizer packed into a double 500-series module. This beast is equipped with transformer balanced inputs and outputs (IGS Custom) as well as a class-A driver circuit. Of course, the entire filtering section is passive and it mirrors analog equalizers from the 60s. There is a separate frequency selector for low cut and boost sections. Top quality potentiometers and ELMA switches were used to achieve outstanding performance.
- 500 Series module format
- Carnhill transformer at the input
- Edcor transformer at the output
- Q factor: -0.5 to 4
- Boost/cut range: +/- 15 dB
- Hardwire bypass
- Input impedance: 1k Ohm
- Output impedance: 600 Ω
- Frequency range: 5-20000 Hz (+/- 0.1 dB)
- Power consumption: 7W
