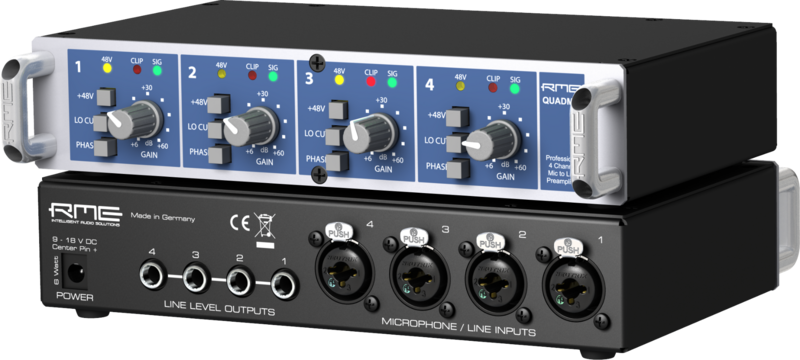

Excellent signal/noise ratio, lowest harmonic distortions and wide gain range make the QuadMic II a first choice for superior studio recordings. QuadMic II is battery powerable and thus excellent for remote applications. Each of the 4 channels features balanced microphone and line inputs with Neutrik XLR/TRS combo jacks, switchable 48V phantom power, phase reversal and a low cut filter.
- Power supply: Operates with voltages ranging from 9-18V DC
- Operation with practically any DC power source, including (rechargeable) batteries
- High-quality switching power supply included, for worldwide operation at 100-240 Volt
- Max. input level XLR: +15 dBu
- Max. input level TRS: +21 dBu
- Max. output level: +21 dBu
- SNR: 129 dB EIN @ 150 Ohm
- THD: < 0.0005% @ 30 dB Gain
- Wide frequency response with special RF input filter
- Frequency response: 5 Hz - 200 kHz, - 0.5 dB
- Hi-pass filter at 80 Hz, 18 dB/oct
